Blade disc AM305/308,R40Li-R80Li,ROB600-1000 in the group  at Motorsågsbutiken (5744871-01)
Blade disc AM305/308,R40Li-R80Li,ROB600-1000
Blade disc AM305/308,R40Li-R80Li,ROB600-1000
Blade disc AM305/308,R40Li-R80Li,ROB600-1000
Blade disc AM305/308,R40Li-R80Li,ROB600-1000
Blade disc AM305/308,R40Li-R80Li,ROB600-1000
Husqvarna Spare Parts
Article nr: 5744871-01

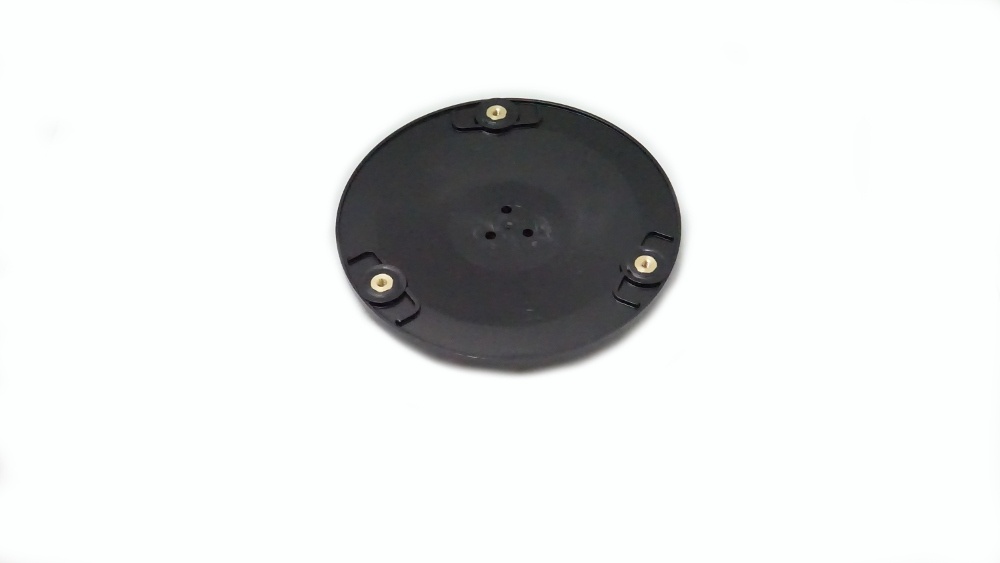

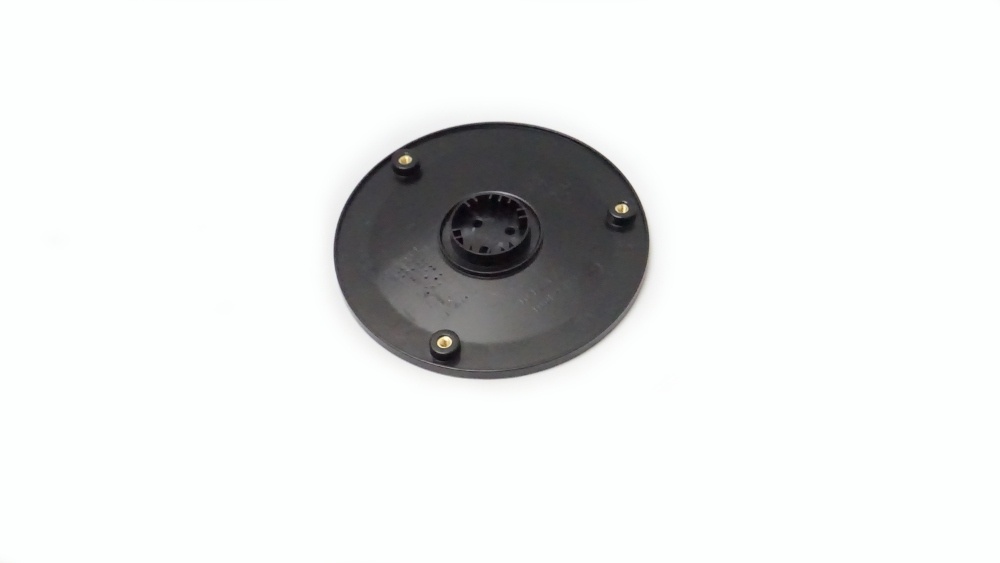

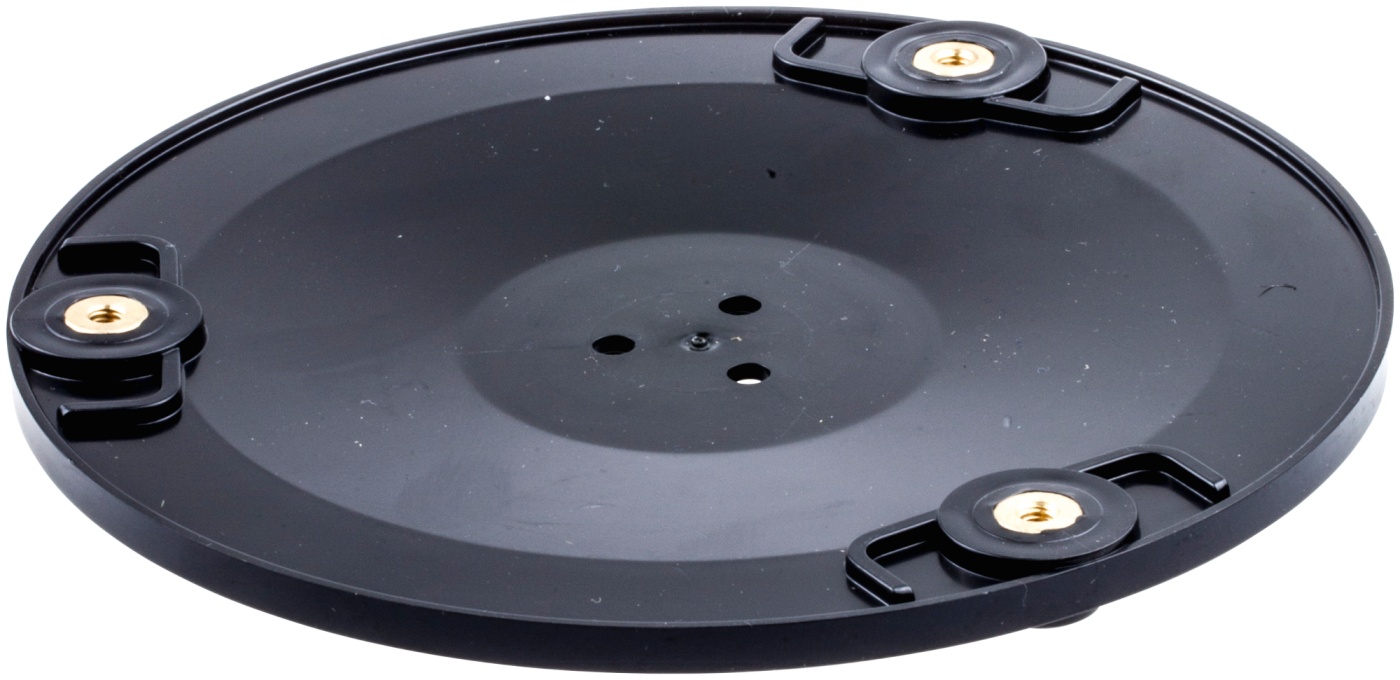

Blade disc AM305/308,R40Li-R80Li,ROB600-1000

The blade disc on an Automower is the "plate" where the blades are mounted. The blades are attached using screws that are fastened into the blade disc’s threaded inserts. If a threaded insert breaks, the entire blade disc needs to be replaced, as the inserts are not available separately.
€19.29 / €17.36

Add to cart
  • Information
  • This blade disc is used for robots with skid plate. If you don't have skid plate use 580 79 28-02.

    574 48 71-01 - Blade disc
    Fits to
    Flymo
    1200R, 2013-06
    1200R, 2016-2017
    Gardena
    R80Li, 2016-2018
    R70Li, 2016-2018
    R50Li, 2015-2018
    R45Li, 2013-2018
    R40Li, 2012-2018
    R38Li, 2015-2017
    Husqvarna
    AUTOMOWER 305, 2011-2015
    McCulloch
    ROB R600/ROB R1000, 2017-01
    ROB R600/ROB R800/ROB R1000, 2018-
    McCulloch
    ROB R600/ROB R1000, 2017-01
    ROB R600/ROB R800/ROB R1000, 2018-
  • Specifications
  • Manufacturer's part number: 574 48 71-01 , 574487101
